Features
ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
1 M hours MTBF, 3-year limited warranty 3 represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
Specifications

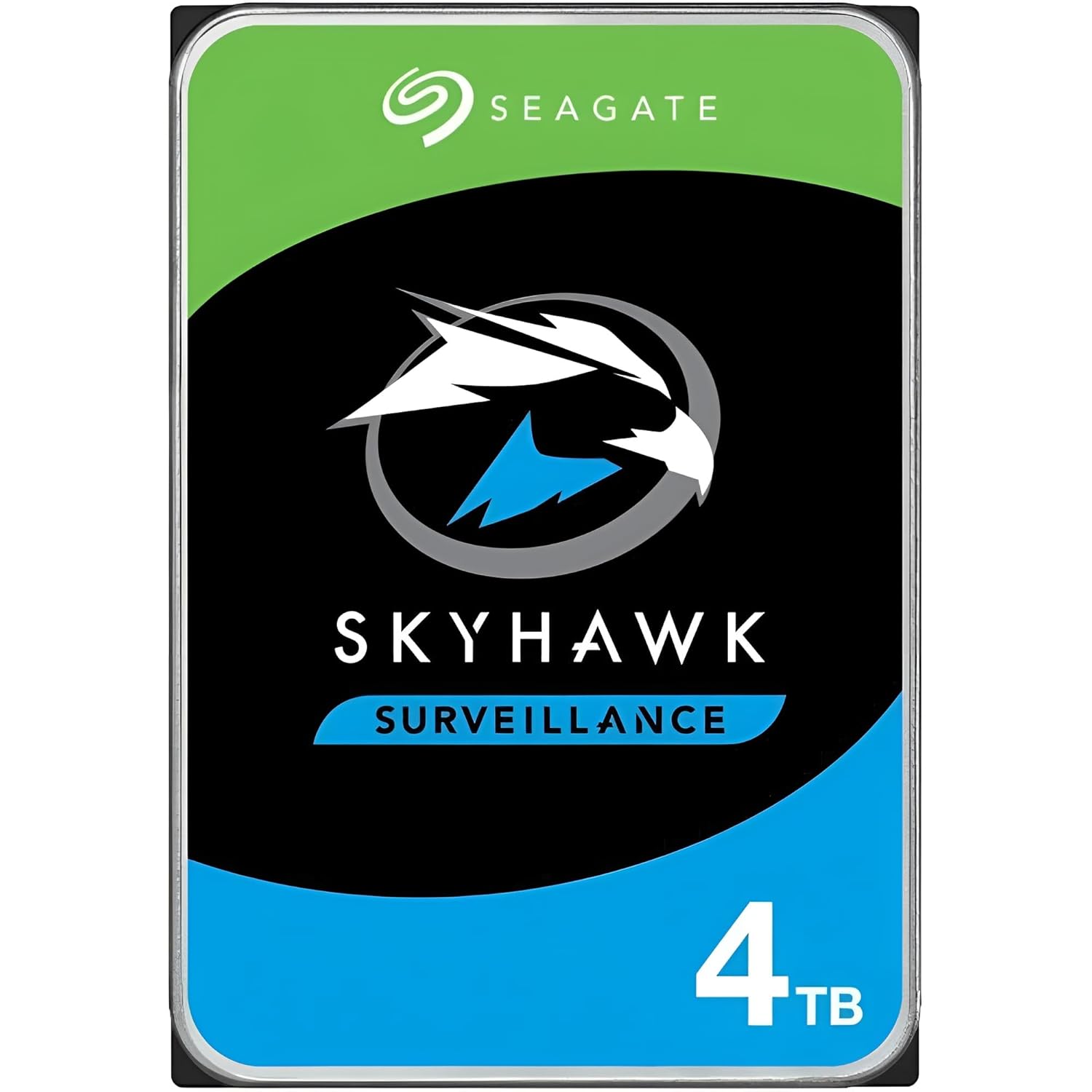

| Model | ST4000VX013 |
| SkyHawk™ Health Management Included | Yes |
| Interface | SATA 6 Gb/s |
| Recording Technology | SMR |
| Drive Design | Air |
| Features and Performance | |
| Drive Bays Supported | Up to 16 |
| Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max Sustained Transfer Rate OD (MB/s) | 180MB/s |
| Cache (MB) | 256 |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-On Hours per year | 8,760 |
| Workload Rate Limit (WRL) | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1,000,000 hr |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 3.7 W |
| Idling Average (W) | 2.5 W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25/0.25 |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| Environmental/Temperature | |
| Operating (ambient, min °C) | 0 |
| Operating (drive case, max °C) | 70 |
| Non-operating (ambient, min °C) | -40 |
| Physical | |
| Height (mm/in, max) | 20.2 mm/0.795 in |
| Width (mm/in, max) | 101.85 mm/4.01 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb, typical) | 490 g/1.08 lb |
| Carton Unit Quantity | 25 |
| Cartons per Pallet / Cartons per Layer | 40/8 |
| Warranty | 3 Years |
